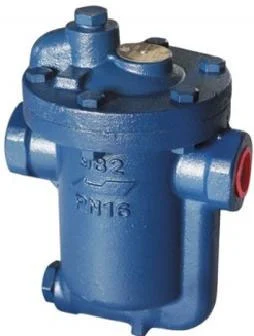

Screw End Inverted Bucket Steam Trap

Specifications

As a professional high quality Taian Screw End Inverted Bucket Steam Trap manufacturer,we will offer you the best after-sale service.This steam valve has these advantages and a long service life. The valve seat and ball valve core are made of high-quality alloy, which is wear-resistant, corrosion-resistant and durable. The ball valve core is ground and fitted with the valve seat on a mechanical device. It has excellent sealing performance, no concentrated wear during operation, and a long service life. The inverted cylinder of XXXX is equipped with an overflow exhaust hole, which can effectively prevent steam lock and air blockage. Allowable back pressure ratio (90%); The open bucket structure will not be damaged by the impact of water. The internal components are made of stainless steel and installed on the valve cover. They are also equipped with filtration devices, making daily maintenance easy.

Installation Guidelines

1.The correct installation and maintenance of this valve is the only guarantee for safety and normal operation.

2.It should be confirmed whether the material, pressure and temperature of the valve body can meet the requirements of the working conditions 3.The pipeline must be cleaned and debris removed before installation.

4.The valve should be installed horizontally at the lowest point of the pipe, and the flow direction should be consistent with the direction marked on the valve body.

5.Each heating equipment must be equipped with its own drain valve to avoid mutual interference.

6.Ensuing that the system can operating safely, slowly open the valve in front of the trap to gradually heat it up to normal state.

7.Regular maintenance is required to ensure the normal operation of the steam trap.

Features

Inverted Bucket Design: The standout feature of this steam trap is its innovative inverted bucket mechanism, which enables precise and efficient condensate removal.

Durable Construction: Inverted Bucket Steam Traps are built to withstand harsh industrial environments. They are typically made from robust materials such as cast iron or stainless steel, ensuring long-lasting performance even in high-pressure and high-temperature applications.

Excellent Temperature Control: These traps provide precise temperature control by efficiently removing condensate as soon as it forms. This prevents temperature fluctuations within the system, ensuring a consistent and reliable heat transfer process.

Versatile Applications: Inverted Bucket Steam Traps (DN25) find applications across various industries, including manufacturing, petrochemical, pharmaceuticals, food processing, and HVAC systems. They are suitable for both low-pressure and high-pressure steam systems.

Shell material

Ductile iron

Valve body nominal pressure and maximum operating temperature

● Valve body design pressure: PN16
● Ductile iron ≤ 232

Specifications and Connections

DN15-DN50 thread BSP, BSPT, NPT, etc

Maximum working pressure difference of drain valve

16bar g

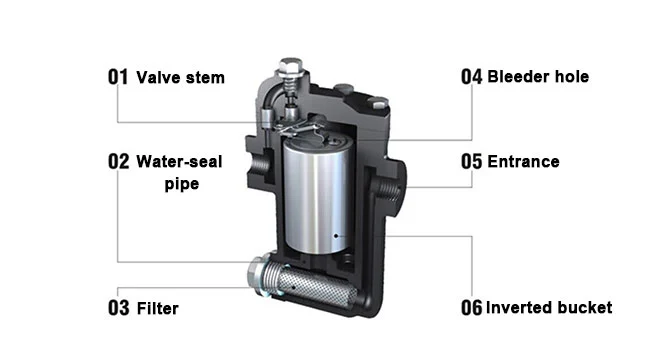

Structure

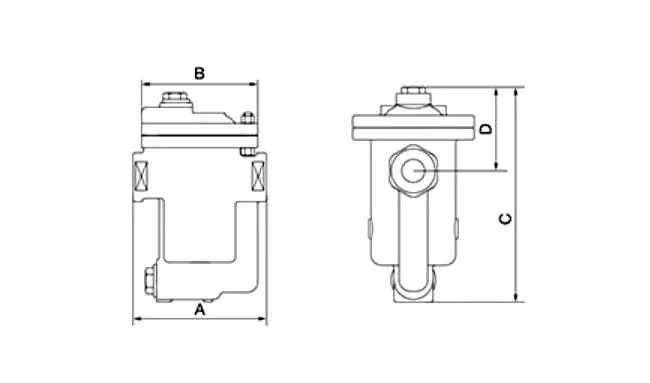

Dimensions （Unit: mm)

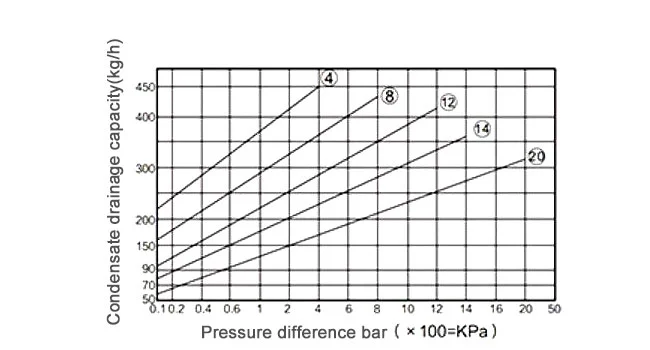

Drainage Capacity

Applications

Screw End Inverted Bucket Steam Trap are among the most powerful of the mechanical traps and are resistant to hydraulic shocks. They can be used with superheated steam when the check is placed at the inlet. They are widely chosen for valve piping in order to match precise pressures and loads.
