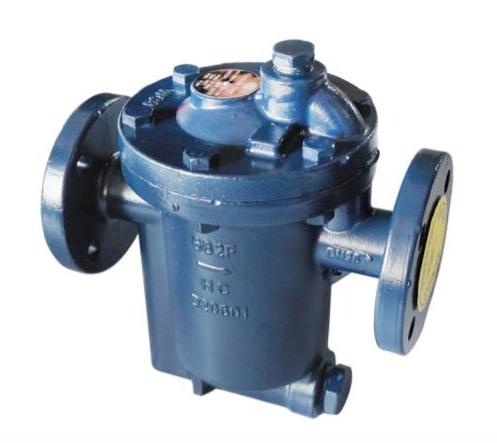

681F-996F Flanged Inverted Bucket Steam Trap
Model:681F-996F
Taian provides high quality 681-996 Flanged Inverted Bucket Steam Trap,You can rest assured to buy it from our factory.The product is a mechanical type of steam trap, and its working principle is based on the density difference between steam and condensate. There is an inverted bucket inside it, and the opening and closing of the valve are controlled by a lever system.
Introduction

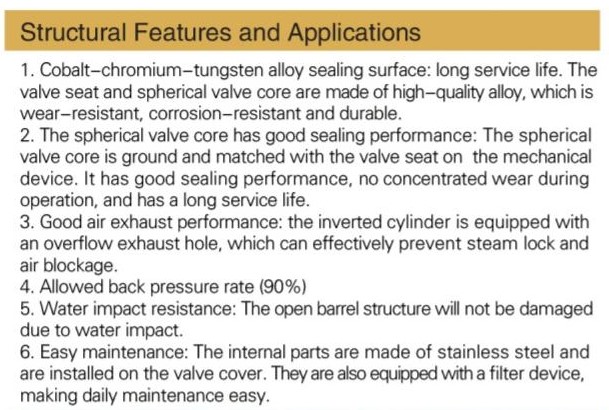

This steam trap features superior structural performance for steam system drainage. Its cobalt-chromium-tungsten alloy valve seat and spherical core are precisely ground and matched, offering great wear, corrosion resistance and stable sealing with no concentrated abrasion, extending service life.
Fitted with overflow exhaust holes on the inverted cylinder, it effectively eliminates steam lock and air blockage, supporting a 90% allowable back pressure rate. The open barrel structure withstands water hammer impact without damage.
All stainless steel internal parts together with a filter are assembled on the valve cover, enabling simple daily maintenance. Durable, reliable and easy to service, it is an optimal choice for industrial steam pipelines.
