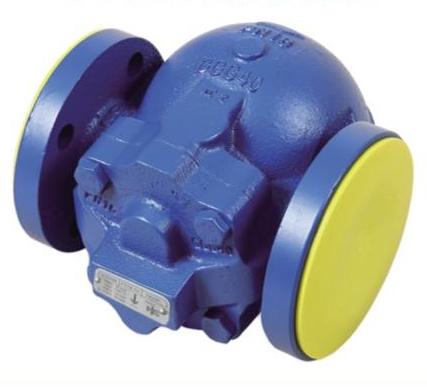

FT14 Flanged Steam Trap

Structural characteristics and applications

1.The valve can discharge saturated condensate quickly and continuously to ensure that there is no water accumulation in the heating equipment, thereby obtaining the highest heating efficiency.

2.The valve core and valve seat sealing surface are made of cobalt-chromium-tungsten alloy, which is wear-resistant, corrosion-resistant and durable.

3.The sealing method adopts a semi-spherical structure, which has been matched and researched, and has excellent sealing performance.

4.Semi-spherical seal prevents concentrated wear during operation and has a long service life.

5.The float drives the lever to automatically adjust the opening of the drain valve seat hole, which works continuously and is not affected by changes in steam pressure, and has stable performance.

6.The X series components can automatically discharge non-condensable gas and hot steam, eliminate gas locks, and have good performance in removing non-condensable gases.

7.The drain valve seat hole is always below the condensate level to form a water seal, and there is no fresh steam leakage during operation.

8.Continuously discharge condensate, the water flow is stable, and the effect of using it in the condensate recovery system is particularly good.
