PRV1000 Type Pilot Piston Steam Pressure Reducing Valve
As a professional high quality Taian PRV1000 type pilot piston steam pressure reducing valve manufacturer,we will offer you the best after-sale service.Working principle High-pressure steam enters the valve through the inlet, is filtered by the filter, and then acts on the lower part of the main valve core. By adjusting the screw to compress the spring, the diaphragm is deformed and the pilot valve is opened. The inlet pressure enters above the piston through the pilot valve, overcomes the force of the main valve spring, opens the main valve, and the steam begins to flow. The outlet pressure enters the diaphragm cavity through the sensing port. Under the action of the outlet pressure, the diaphragm reaches a balance with the force of the adjusting spring, controlling the opening degree of the pilot valve. PRV1000 type pilot piston steam pressure reducing valve regulates the flow rate above the piston by changing the opening degree of the pilot valve, thereby controlling the opening degree of the main valve and achieving a stable outlet pressure.
Specifications
Taian is a manufacturer and supplier specializing in supplying PRV1000 type pilot piston steam pressure reducing valve.This pressure reducing valve achieves precise pressure control through an internal pilot system, eliminating the need for external components and pipelines, and features a compact structure.High precision and large capacity: Compared with direct-acting valves, it has a greater flow capacity and higher regulation accuracy, and can maintain a stable outlet pressure within a wide range of flow rates. It adopts stainless steel diaphragms, hardened stainless steel working parts and built-in detachable filters to ensure long-term stable operation. All working parts can be replaced online, which is convenient for maintenance and repair. The maximum pressure reduction ratio of PRV1000 type pilot piston steam pressure reducing valve can reach 20:1, which can meet the requirements of various working conditions. The leakage grade of the valve complies with the ANSI Class IV standard.

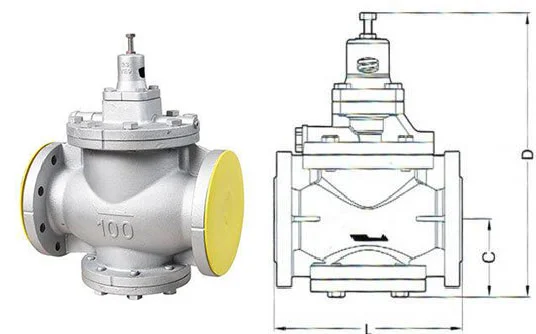

| Dimensions | ||||||
| Nominal Size |
GB (L) |
JIS (L) |
C | D | Weight(kg) | |
| GB(L) | JIS(L) | |||||
| DN15 | 150 | 150 | 64 | 285 | 8.0 | 8.0 |
| DN20 | 150 | 155 | 64 | 285 | 8.5 | 8.5 |
| DN25 | 160 | 160 | 67 | 300 | 10.0 | 10.0 |
| DN32 | 180 | 190 | 82 | 323 | 14.0 | 14.0 |
| DN40 | 200 | 190 | 82 | 323 | 14.5 | 15.5 |
| DN50 | 230 | 220 | 93 | 347 | 20.0 | 21.0 |
| DN65 | 290 | 245 | 100 | 357 | 30.0 | 30.0 |
| DN80 | 310 | 290 | 122 | 404 | 35.0 | 37.0 |
| DN100 | 350 | 330 | 144 | 450 | 52.5 | 57.0 |
Product Configuration Table
Valve Body/Nalve Cover:GGG40
Main Valve Seat, Disc & Pilot Valve Assembly:SUS420/SS304+STL
Push Rod, Main Spring:SS304/SS302
Piston/Sealing Ring:CAC 406/PTFE
Diaphragm:SS301
Gasket:Graphite Composite Gascket/ Non-Asbestos Gascket
Prv1000 Condensate Discharge Chart
| P1(MPa) | P2(MPa) | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 | DN65 | DN80 | DN100 |
| 1 | 0.05* | 92 | 212 | 369 | 600 | 831 | 1, 478 | 2, 310 | 3, 326 | 5.913 |
| 0.1-0.4 | 132 | 303 | 528 | 858 | 1, 188 | 2, 112 | 3, 300 | 4, 752 | 8.448 | |
| 0/5 | 127 | 292 | 508 | 825 | 1, 143 | 2, 033 | 3, 176 | 4, 574 | 8.132 | |
| 0.6 | 116 | 268 | 467 | 760 | 1, 052 | 1, 871 | 2, 923 | 4, 210 | 7.484 | |
| 0.7 | 104 | 239 | 416 | 676 | 936 | 1, 664 | 2, 601 | 3, 745 | 6.659 | |
| 0.8 | 87 | 200 | 348 | 566 | 784 | 1, 394 | 2, 179 | 3, 137 | 5.578 | |
| 0.9 | 63 | 145 | 252 | 410 | 568 | 1, 010 | 1, 578 | 2, 273 | 4.042 | |
| 0.9 | 0.1-0.4 | 120 | 276 | 480 | 780 | 1, 080 | 1, 920 | 3, 000 | 4, 320 | 7.680 |
| 0.5 | 110 | 253 | 441 | 716 | 992 | 10764 | 2.756 | 3.969 | 7.056 | |
| 0.6 | 98 | 226 | 393 | 639 | 884 | 1.574 | 2.456 | 3.543 | 6.299 | |
| 0.7 | 82 | 190 | 330 | 537 | 744 | 1.323 | 2.067 | 2.976 | 5.292 | |
| 0.8 | 60 | 138 | 240 | 390 | 540 | 961 | 1.501 | 20162 | 3.844 | |
| 0.8 | 0.1-0.3 | 108 | 248 | 432 | 702 | 972 | 1.728 | 2.700 | 3.888 | 6.912 |
| 0.4 | 103 | 237 | 412 | 670 | 928 | 1.650 | 2.578 | 3.712 | 6.6.00 | |
| 0.5 | 92 | 212 | 369 | 600 | 832 | 1.479 | 2.311 | 3.328 | 5.916 | |
| 0.6 | 77 | 179 | 311 | 506 | 701 | 1.247 | 1.949 | 20806 | 4.989 | |
| 0.7 | 56 | 130 | 227 | 369 | 511 | 909 | 1.420 | 2.045 | 3.636 | |
| 0.7 | 0.1-0.3 | 96 | 220 | 384 | 624 | 864 | 1.536 | 2.400 | 3.456 | 6.144 |
| 0.4 | 86 | 197 | 344 | 559 | 774 | 1.377 | 2.151 | 3.098 | 5.508 | |
| 0.5 | 72 | 167 | 291 | 474 | 656 | 1.166 | 1.823 | 2.625 | 4.667 | |
| 0.6 | 53 | 122 | 213 | 346 | 480 | 854 | 1.334 | 1.921 | 3.416 | |
| 0.6 | 0.1-0.2 | 84 | 193 | 336 | 546 | 756 | 1.344 | 2.100 | 3.024 | 5.376 |
| 0.3 | 79 | 182 | 316 | 514 | 712 | 1266 | 1.979 | 2.850 | 5.067 | |
| 0.4 | 67 | 155 | 270 | 438 | 607 | 1.080 | 1.687 | 2.430 | 4.321 | |
| 0.5 | 49 | 114 | 198 | 322 | 447 | 795 | 1.242 | 1.788 | 3.180 | |
| 0.5 | 0.1-0.2 | 72 | 165 | 288 | 468 | 648 | 1.152 | 1.800 | 2.592 | 4.608 |
| 0.3 | 61 | 141 | 246 | 400 | 554 | 986 | 1.540 | 2.218 | 3.944 | |
| 0.4 | 45 | 105 | 182 | 297 | 411 | 731 | 1.142 | 1.645 | 2.925 | |
| 0.4 | 0.1 | 60 | 138 | 240 | 390 | 540 | 960 | 1.500 | 2.160 | 3.840 |
| 0.2 | 55 | 126 | 220 | 358 | 496 | 882 | 1..378 | 1.984 | 3.528 | |
| 0.3 | 41 | 95 | 165 | 268 | 372 | 661 | 1.033 | 1.488 | 2.646 | |
| 0.3 | 0.1 | 48 | 110 | 192 | 312 | 432 | 768 | 1.200 | 1.728 | 3.072 |
| 0.2 | 36 | -3 | 145 | 237 | 328 | 583 | 911 | 1.312 | 2.333 | |
| 0.2 | 0.1 | 30 | 70 | 123 | 200 | 277 | 493 | 770 | 1.1.9 | 1.972 |
| 0.1 | 0.05 | 18 | 41 | 72 | 118 | 164 | 291 | 455 | 656 | 1.166 |
Structural characteristics and applications
The PRV1000 series steam pressure reducing valve is a piston type guided actuation pressure reducing valve. Can be used in places with high frequency of usage from small to large traffic, with a simple and sturdy internal structure.
1. Compared with previous pressure reducing valves, the operability and durability have been greatly improved. (Compared to our company's products, it is twice as much)
2. The main valve has a spherical surface, high sealing performance, and minimal leakage (compliant with ANSI Class 4)
3. The gasket is made of non asbestos material.
Shell material
Ductile iron
Valve body nominal pressure and maximum operating temperature
● Valve body design pressure: PN16
● Ductile iron: ≤ 232℃
Specifications and Connections
DN15-DN100 flange connection PN16
DN15-DN100 flange connection JIS10K
Pressure reduction ratio and pressure control range
Pressure reduction ratio 10:1
0.1bar-10bar
Installation and Maintenance
PRV1000 type pilot piston steam pressure reducing valve is installed on a horizontal pipeline, and the main valve diaphragm chamber is located below the pipeline. A filter with a 100-mesh screen is installed before the valve to prevent impurities from entering the valve. Install a bypass to ensure fluid supply when the pressure reducing valve is under maintenance. Install pressure gauges upstream and downstream to facilitate commissioning and monitoring
