Lever-operated Wafer Concentric Butterfly Valve
Taian is Lever-operated wafer concentric butterfly valve professional manufacturer,we will offer you the best after-sale service and timely delivery.The butterfly valve is widely applied in the automation and intelligent control systems of production processes in fields such as thermal power, hydropower, nuclear power, petroleum and petrochemicals, coal chemical industry, long-distance natural gas storage, municipal water supply and drainage, heating systems, environmental protection, medicine, papermaking, and steel smelting, meeting the increasingly high intelligent control demands of industrial production.
Specifications
As a professional high quality Taian Lever-operated wafer concentric butterfly valve manufacturer,we will offer you the best after-sale service.In recent decades, Lever-operated wafer concentric butterfly valve have achieved significant development.With the application of high-temperature resistant, low-temperature resistant, strong corrosion-resistant, strong erosion-resistant and high-strength alloy materials in butterfly valves, Lever-operated waferconcentric butterfly valve has been widely used in industrial fields such as high and low temperatures, strong erosion-resistant and long service life, bringing butterfly valve technology to a new level.

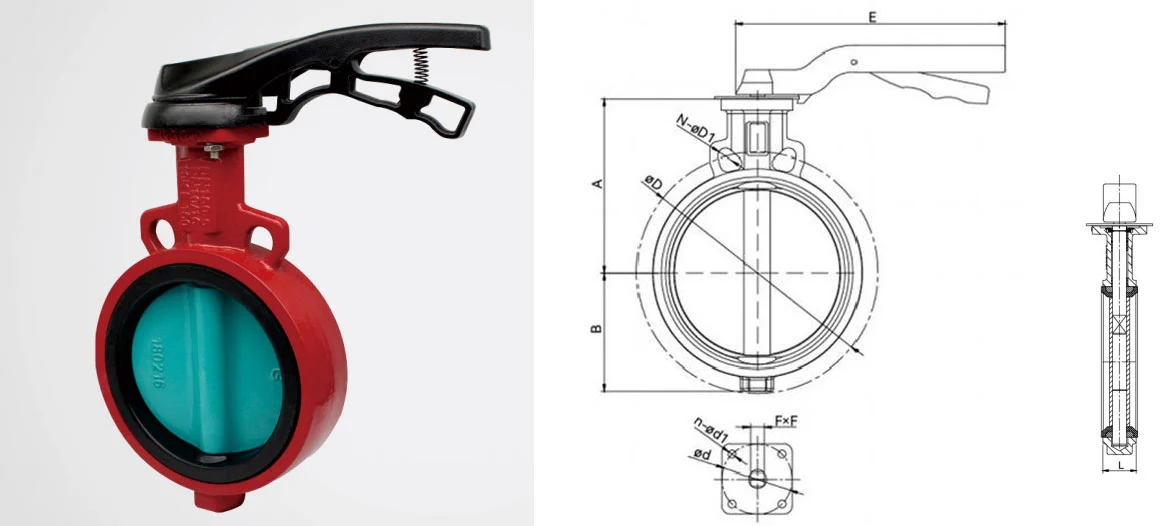

| DN(mm) | 50 | 65 | 80 | 100 | 125 | 150 |
| NPS(in) | 2 | 2.5 | 3 | 4 | 5 | 6 |
| L±2 | 42 | 44 | 45 | 51.5 | 54 | 54 |
| A | 140 | 152 | 159 | 180 | 190 | 203.5 |
| B | 65 | 73 | 80 | 97 | 110 | 126 |
| E | 200 | 200 | 200 | 250 | 250 | 250 |
| FxF | 9×9 | 9×9 | 9×9 | 11×11 | 14×14 | 14×14 |
| ød | 50 | 50 | 50 | 70 | 70 | 70 |
| n-od1 | 4-88 | 4-88 | 4-88 | 4-x10 | 4-610 | 4-610 |
| ØD | 120.6 | 139.7 | 152.4 | 190.5 | 215.9 | 241.3 |
| N-D1 | 4-619 | 4-×19 | 4-619 | 8-619 | 8-022.4 | 8-022.4 |
Technical Data
| Nominal diameter | DN50~DN150(2"~6") |
| Pressure Rating | Class150LB |
| Temperature | -10℃to 100℃ |
| Applicable Medium | Wate, oil, gas, etc. |
| Connection End | Wafer |
Execution Standards
| Description | Standards |
|
Design and Manufacturing |
API 609, JIS 2032 |
| Face to Face | ASME B16.10, ISO 5752 |
| Flange Dimensions | ASME B16.5, ISO7005-2 |
| Test | API 598, JIS B2003 |
Material List
| Description | Material |
| Body | QT450/WCB/CF8/CF8M etc. |
| Seat | NBR/EPDM/PTFE etc. |
| Disc | QT450/CF8/CF8M etc. |
| Stem | SS416/SS420/17-4PH etc. |
| Bush | QSn-4 |
| O-ring | EPDM |
| Drive Device | Aluminum Alloy |
Product Properties
Certified and approved valves for various applications.
Zero leakage.
Not replaceable vulcanised seat.
Single-piece shaft, complete protection of shaft and body against circulating liquids.
Bidirectional flow.
Self-cleaning.
Light-weight design, easy to instal.
Easy to maintain.
Can be operated using different drive device (Joystick, Pneumatic, electric or Hydraulic actuators, etc.)
Low operating torque.
Aerodynamically designed disc for minimising pressure loss,
The varieties and quantities of butterfly valves are still expanding, and they are developing towards high temperature, high pressure, large diameter, high sealing, long service life, excellent regulating characteristics and multi-functionality of valves. The reliability and other performance indicators of Lever-operated wafer concentric butterfly valve are all equal. It has reached a relatively high level and has partially replaced stop valves, gate valves and ball valves. With the advancement of butterfly valve technology, in the foreseeable short term, butterfly valves will become the dominant type of valve, especially in the fields of large and medium-sized diameters and medium and low pressure. To meet the requirements of industrial applications such as high and low temperatures, strong erosion, and long service life.
