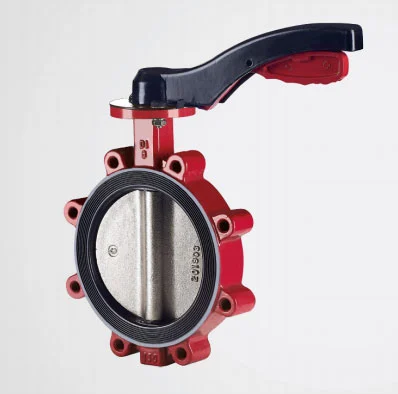

Lever-Operated Lug Concentric Butterfly Valve
Taian provides high quality Lever-Operated Lug Concentric Butterfly Valve,You can rest assured to buy it from our factory.This is a manually operated butterfly valve. Its valve body is designed with threaded bolt holes (lug), which are used to connect the valve to the pipe flange through bolts. When the operator turns the valve stem through the lever, the valve plate rotates accordingly, thereby controlling the flow of the fluid. In the fully open position, the valve plate is perpendicular to the direction of fluid flow, allowing the fluid to pass freely. In the fully closed position, the valve plate is parallel to the fluid flow direction and closely adheres to the valve seat to prevent the fluid from passing through.
Specifications
As a professional high quality Taian Lever-Operated Lug Concentric Butterfly Valve manufacturer,we will offer you the best after-sale servic.The Lug design of Butterfly Valve allows for installation and maintenance without shutting down the entire system. Lever-Operated Lug Concentric Butterfly Valve is cost-effective because the manual operation mode is simple and the cost is low, and it is suitable for various media and working conditions.
Technical Data
| Nominal diameter | DN50~DN150(2"~6") |
| Pressure Rating | Class150LB |
| Temperature | -10℃to 100℃ |
| Applicable Medium | Wate, oil, gas, etc. |
| Connection End | Lug |
Execution Standards
| Description | Standards |
|
Design and Manufacturing |
API 609, JIS 2032 |
| Face to Face | ASME B16.10, ISO 5752 |
| Flange Dimensions | ASME B16.5, ISO7005-2 |
| Test | API 598, JIS B2003 |
Material List
| Description | Material |
| Body | QT450/WCB/CF8/CF8Metc. |
| Seat | NBR/EPDM/PTFE etc. |
| Disc | QT450/CF8/CF8M etc. |
| Stem | SS416/SS420/17-4PH etc. |
| Bush | QSn-4 |
| O-ring | EPDM |
| Drive Device | Aluminum Alloy |
Product Properties
·Certified and approved valves for various applications.
·Zero leakage.
·Not replaceable vulcanised seat.
·Single-piece shaft, complete protection of shaft and body against circulating liquids.
·Bidirectional flow.
·Self-cleaning.
·Light-weight design, easy to install.
·Easy to maintain.
·Can be operated using differentdrive device(Joystick, Pneumatic, electric or Hydrauic actuators, etc.)
·Low operating torque.
·Aerodynamically designed disc for minimising pressure loss.

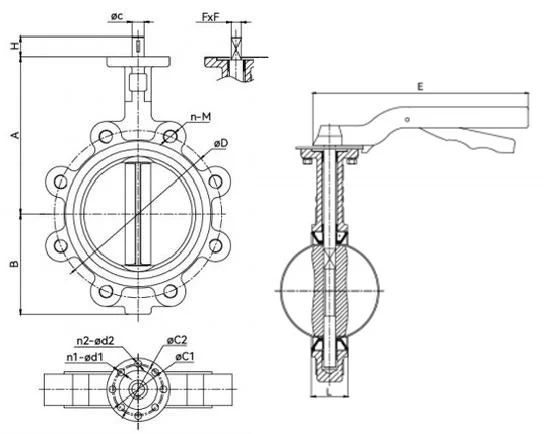

Main Dimensions
| DN(mm) | 50 | 65 | 80 | 100 | 125 | 150 | |
| NPS(in) | 2 | 2.5 | 3 | 4 | 5 | 6 | |
| L±2 | 43 | 46 | 46 | 52 | 56 | 56 | |
| A | 161 | 175 | 181 | 200 | 213 | 226 | |
| B | 80 | 89 | 95 | 114 | 127 | 163 | |
| H | ISO5211 | 16 | 16 | 16 | 16 | 20 | 20 |
| 90° | 28 | 28 | 28 | 28 | 28 | 28 | |
| E | 200 | 200 | 200 | 250 | 250 | 250 | |
| oC | 12.6 | 12.6 | 12.6 | 15.77 | 18.92 | 18.92 | |
| FxF | 9×9 | 9×9 | 9×9 | 11×11 | 14×14 | 14×14 | |
| ØC1 | 50 | 50 | 50 | 70 | 70 | 70 | |
| n1-od1 | 4-88 | 4-88 | 4-88 | 4-610 | 4-610 | 4-610 | |
| ØC2 | 57 | 57 | 57 | 70 | 70 | 70 | |
| n2-od2 | 4-87.5 | 4-87.5 | 4-7.5 | 4-610.5 | 4-610.5 | 4-610.5 | |
| ØD | 120.6 | 139.7 | 152.4 | 190.5 | 215.9 | 241.3 | |
| n-M | 4-5/8" | 4-5/8" | 4-5/8" | 8-5/8" | 8-3/4" | 8-314" | |
Application field
Lever-Operated Lug Concentric Butterfly Valve is applied in multiple industries. For instance, in water treatment plants, it is used to control the water flow at various stages from water intake to distribution.The HVAC system is used to control the flow of air or water. The food and beverage industry uses it to handle process fluids that meet hygiene standards.Chemical processing is used to manage the flow of corrosive and abrasive materials. The oil and gas industry uses it to regulate the flow of crude oil, natural gas and other hydrocarbons.
