APl Stainless Steel Gate Valve
Taian provides high quality APl Stainless Steel Gate Valve,You can rest assured to buy it from our factory.
Specifications
Taian is a manufacturer and supplier specializing in supplying APl Stainless Steel Gate Valve The Gate Valve is 1/2" - 4" (DN15-100). The materials adopted are SS304, SS316, CF8M, CF8 and WCB. The pressure rating is 1000 psi/PN63. The temperature range is from -20°C to 210°C. The connection methods are threaded (NPT/BSP), flange, and butt welding. The sealing materials adopted by APl Stainless Steel Gate Valve are PTFE, R-PTFE and PPR. Applicable to water, oil, gas, steam and slightly corrosive media; The production standards are strictly in accordance with API 600, CE and ISO9001
Applicable standards
Design&Manufacture:APl600/API603
Face To Face:ASME B16.10
Flanged Ends:ASME B16.5
BW End Dimension:ASME B16.25
Design descriptions
Full Port Design
OS&Y Outside Srcew And Yoke
BB.Bolted Bonnet
Flexible Wedge, fully Guided
Choice Of Solid Or Split Wedge
Renewable Seat Rings
Rising Stem And Non-rising Handwheel
Flanged Or Buttwelding Ends

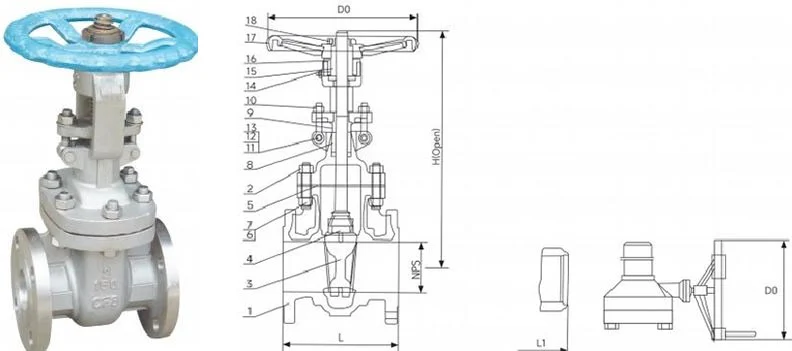

Materials of parts
| No. | Part Name | ASTM Materials | ||||
| 1 | Body | A351-CF8 | A351-CF8M | A351-CF3M | A8904A/5A | B148 C95800 |
| 2 | Bonnet | A351-CF8 | A351-CF8M | A351-CF3M | A8904A/5A | B148 C95800 |
| 3 | Wedge | A351-CF8 | A351-CF8M | A351-CF3M | A8904A/5A | B148 C95800 |
| 4 | Stem | A182-F304 | A182-F316 | A182-F316L | A182 F51/53 | F51 |
| 5 | Bonnet Gasket | Graphite+304 | Graphite+316 | Graphite+316L | 316+Graphite | 316+Graphite |
| 6 | Bonnet Stud | A193-B8 | A193-B8M | A193-B8M | A193-B8M | A193-B8M |
| 7 | Bonnet Stud Nut | A194-8 | A194-8M | A194-8M | A194-8M | A194-8M |
| 8 | Packing | Graphite | ||||
| 9 | Gland | A276-304 | A276-316 | A276-316L | A182 F51/53 | B148 C95800 |
| 10 | Gland Flange | A351-CF8 | A351-CF8M | A351-CF8M | A8904A/5A | B148 C95800 |
| 11 | Eyebolt Pin | A276-304 | A276-316 | A276-316 | A276316 | A276316 |
| 12 | Eyebolt | A193-B8 | A193-B8 | A193-B8 | A193-B8M | A193-B8M |
| 13 | Eyebolt Nut | A194-8 | A194-8 | A194-8 | A194-8M | A194-8M |
| 14 | Grease Fitting | Carbon steel Ni Plated | ||||
| 15 | Stem Nut | Aluminum-Bronze | ||||
| 16 | Yokesleeve Jam Nut | A276-304 | ||||
| 17 | Handwheel | Malleable Iron | ||||
| 18 | Handwheel Nut | Carbon Steel | ||||
Note.1）The chart above only lists out some common composition of steel gate valve parts. We may provide other different parts material composition according to the customer's request or the actual valve working condition.
We may provide other different actuators according to the customer's request, such as pneumatic, electric, hydraulic actuators, the details of them according to the actual valve working condition.
Dimensional datas of ANSI Class 150#
|
NPS DN |
1/2 | 3/4 | 1 | 1-1/2 | 2 | 2-1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | in |
| 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | mm | |
|
L (RF) |
4.25 | 4.62 | 5.00 | 6.5 | 7.00 | 7.5 | 8.00 | 9.00 | 10.50 | 11.50 | 13.00 | 14.00 | 15.00 | 16.00 | in |
| 108 | 117 | 127 | 165 | 178 | 190 | 203 | 229 | 267 | 292 | 330 | 356 | 381 | 406 | mm | |
|
L1 (BW) |
4.25 | 4.62 | 5.50 | 7.00 | 7.50 | 8.00 | 8.50 | 9.50 | 11.00 | 12.00 | 13.50 | 14.50 | 15.50 | 16.50 | in |
| 108 | 117 | 140 | 178 | 191 | 203 | 216 | 242 | 280 | 305 | 343 | 369 | 394 | 419 | mm | |
|
H (open) |
8.25 | 8.50 | 9.25 | 11.75 | 15.25 | 17.00 | 18.88 | 23.00 | 30.50 | 37.62 | 45.50 | 53.12 | 59.38 | 67.00 | in |
| 210 | 215 | 235 | 300 | 386 | 434 | 480 | 584 | 765 | 956 | 1149 | 1350 | 1508 | 1703 | mm | |
| D0 | 4 | 4 | 6 | 6 | 8 | 8 | 10 | 12 | 12 | 14 | 16 | 18 | 20 | 22 | in |
| 100 | 100 | 140 | 140 | 200 | 200 | 250 | 300 | 300 | 350 | 400 | 450 | 500 | 550 | mm | |
| WT(kg)- | 3 | 3.5 | 5.5 | 9.2 | 15 | 21 | 27 | 42 | 64.5 | 101 | 149 | 221 | 303 | 387 | BW |
| 2.5 | 3 | 4 | 8 | 12.5 | 15 | 21.5 | 34 | 58 | 90 | 130.5 | 207 | 275 | 355 | RF/RTJ |
Dimensional datas of ANSI Class 300#
|
NPS DN |
1/2 | 3/4 | 1 | 1-1/2 | 2 | 2-1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | in |
| 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | mm | |
|
L/L1 (RF/BW) |
5.50 | 6.00 | 6.50 | 7.50 | 8.50 | 9.50 | 1.12 | 12.00 | 15.88 | 16.50 | 18.00 | 19.75 | 30.00 | 33.00 | in |
| 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 403 | 419 | 457 | 502 | 762 | 838 | mm | |
|
2L (RTJ) |
- | 9.12 | 10.12 | 11.75 | 12.62 | 16.50 | 17.12 | 18.62 | 20.38 | 30.62 | 33.62 | in | |||
| - | - | - | - | 232 | 257 | 298 | 321 | 419 | 435 | 473 | 518 | 778 | 854 | mm | |
|
H (open) |
6.34 | 6.42 | 7.72 | 9.88 | 16.12 | 17.88 | 20.00 | 24.00 | 31.75 | 39.38 | 47.62 | 55.75 | 62.25 | 67.88 | in |
| 161 | 163 | 196 | 251 | 410 | 453 | 509 | 612 | 805 | 1000 | 1210 | 1415 | 1580 | 1725 | mm | |
| D0 | 4 | 4 | 6 | 6 | 8 | 8 | 10 | 10 | 14 | 16 | 18 | 20 | 22 | 22 | in |
| 100 | 100 | 140 | 140 | 200 | 200 | 250 | 250 | 350 | 400 | 450 | 500 | 550 | 550 | mm | |
| WT(kg) | 3.3 | 4 | 6.5 | 10.5 | 20 | 30 | 43 | 61 | 123 | 179 | 276 | 413 | 585 | 813 | BW |
| 2.7 | 3.5 | 4.7 | 8.5 | 14.5 | 22.5 | 33 | 45.5 | 97 | 140 | 219 | 334 | 484 | 689 | RF/RTJ |
Dimensional datas of ANSI Class 600#
|
NPS DN |
1/2 | 3/4 | 1 | 1-1/2 | 2 | 2-1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | in |
| 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | mm | |
|
L (RF) |
6.50 | 7.50 | 8.50 | 9.50 | 11.50 | 13.00 | 14.00 | 17.00 | 22.00 | 26.00 | 31.00 | 33.00 | 35.00 | 39.00 | in |
| 165 | 190 | 216 | 241 | 292 | 330 | 356 | 432 | 559 | 660 | 787 | 838 | 889 | 991 | mm | |
|
L1 (BW) |
- | - | 11.62 | 13.12 | 14.12 | 17.12 | 22.12 | 26.12 | 31.12 | 33.12 | 35.12 | 39.12 | in | ||
| - | - | - | 295 | 333 | 359 | 435 | 562 | 664 | 791 | 841 | 892 | 994 | mm | ||
|
H (open) |
6.34 | 6.42 | 7.72 | 9.88 | 16.50 | 18.76 | 20.38 | 25.50 | 33.00 | 40.38 | 48.38 | 57.00 | 62.00 | 70.62 | in |
| 161 | 163 | 196 | 251 | 418 | 476 | 518 | 646 | 840 | 1025 | 1230 | 1450 | 1575 | 1795 | mm | |
| D0 | 4 | 6 | 9 | 8 | 8 | 10 | 10 | 12 | 18 | 20 | 24 | 24 | 24 | 24 | in |
| 100 | 140 | 140 | 200 | 200 | 250 | 250 | 300 | 450 | 500 | 600 | 600 | 600 | 600 | mm | |
| WT(kg) | 4.5 | 5.5 | 8.5 | 16.5 | 32 | 46 | 59 | 99 | 151 | 348 | 540 | 789 | 1103 | 1359 | BW |
| 3.7 | 4.2 | 6.5 | 9.5 | 26 | 37 | 47 | 74 | 111 | 275 | 418 | 647 | 935 | 1098 | RF/RTJ |
Main application fields: APl Stainless Steel Gate Valve is applied in the fields of petroleum, natural gas, chemical engineering, power metallurgy, lifting, water supply, automotive and shipbuilding, oil and water, road heating system control, food, medicine, daily chemicals, municipal construction, mechanical equipment, etc. Adhering to the principle of honest operation, we are dedicated to providing our customers with high-quality services!
