AP Pressure Seal Bonnet Gate Valve

As the professional manufacturer, we would like to provide you Taian AP Pressure Seal Bonnet Gate Valve. And we will offer you the best after-sale service and timely delivery. The API Pressure Seal Bonnet Gate Valve is a high-performance gate valve specially designed for high-pressure and high-temperature working conditions, and is widely used in industries such as power, petrochemical, oil refining, natural gas, and nuclear energy. Its core feature is the adoption of a pressure-sealed valve cover structure, which replaces the traditional bolted valve cover and achieves self-sealing under high pressure, thus avoiding the risk of leakage.

Send Inquiry

Product Description

Specifications

As a professional high quality Taian AP| Pressure Seal Bonnet Gate Valve manufacturer,we will offer you the best after-sale service.The pressure-sealed valve cover of Seal Bonnet Gate Valve uses the medium pressure to push the valve cover and gasket to press tightly, achieving "self-sealing". The higher the pressure, the tighter the seal. Compared with the bolt valve cover design, it is lighter in weight and smaller in volume, making it suitable for space-constrained occasions.AP| Pressure Seal Bonnet Gate Valve is applicable to Class 600 to 3500 (PN100 - PN600), with a temperature range up to 650°C. The valve body material is made of cast or forged carbon steel, alloy steel, stainless steel, and duplex steel, nickel-based alloy, etc. can be selected. The design of the valve plate includes Flexible Wedge, Parallel Slide and Double Disc. The operation methods include manual (handwheel), gearbox, electric, pneumatic or hydraulic actuators

Ap Pressure Seal Bonnet Gate Valve

Applicable standards

Design&Manufacture:AP¹600/API6D

Face To Face:ASME B16.10

Flanged Ends:ASME B16.5

BW End Dimension:ASME B16.25

Design descriptions

PSB, pressure Seal Bonnet

Flexible Wedge, fully Guided

Choice Of Solid Or Split Wedge

Renewable Seat Rings

Rising Stem And Non-rising Handwheel

Flanged Or Buttwelding Ends

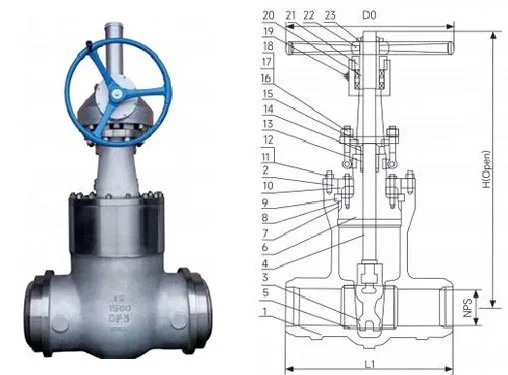

Materials of parts

No.	Part Name	ASTM Material
1	Body	A216-WCB	A217-WC6	A351-CF8M	A351 CN7M	A8904A/5A
2	Yoke bonnet	A216-WCB	A217-WC6	A351-CF8M	A351 CN7M	A8904A/5A
3	Wedge	A216-WCB+HF	A217-WC6+HF	A351-CF8M+HF	A351 CN7M	A8904A/5A
4	Stem	A182-F6a	CR-MO-V	A182-316	Alloy 20	A182 F51/F53
5	Seat Ring	A105+HF	A182-F11+HF	A240-316+HF	Alloy 20	A182 F51/F53
6	Bonnet Basket	A105	A182-F11	A240-316	Alloy 20	A182 F51/F53
7	Bonnet Gasket	Steel Ring	304SS RING	316SS RING	316+Graphite	316+Graphite
8	Adapter Ring	Carbon Steel	A276-420	A276-316	Alloy	A182 F51/F53
9	Retainer	Carbon Steel	A276-420	A276-316	Alloy	A182 F51/F53
10	Yoke Cap	Carbon Steel	Alloy Steel	Stainless Steel	Alloy	A182 F51/F53
11	Bonnet Stud	A193-B7	A193-B16	A193-B8M	A193-B8M	A193-B8M
12	Bonnet Stud Nut	A194-2H	A194-7	A194-8M	A194-8M	A194-8M
13	Packing	Graphite
14	Gland	A276-420	A276-304	A276-316L	Alloy 20	A182 F51/F53
15	Gland Flange	A216-WCB	A217-WC6	A351-CF8M	A351 CN7M	A8904A/5A
16	Eyebolt Pin	Carbon Steel	A276-420	A276-316	A276316	A276316
17	Eyebolt	Carbon Steel	A193-B7	A193-B8	A193-B8M	A193-B8M
18	Eyebolt Nut	Carbon Steel	A194-2H	A194-8	A194-8M	A194-8M
19	Grease Fitting	Brass+Steel
20	Yokesleeve	Aluminum-Bronze
21	Yokesleeve Jam Nut	Carbon Steel		Stainless Steel
22	Handwheel	Malleable Iron
23	Handwheel Nut	Carbon steel

Note:1)The chart above only lists out some common composition of steel gate valve parts.We may provide the different parts material composition according to the customer's request or the actual valve working condition.

2)We may provide other different actuators according to the customer's request, such as pneumatic, electric, hydraulic actuators, the details of them according to the actual valve working condition

Ap Pressure Seal Bonnet Gate Valve

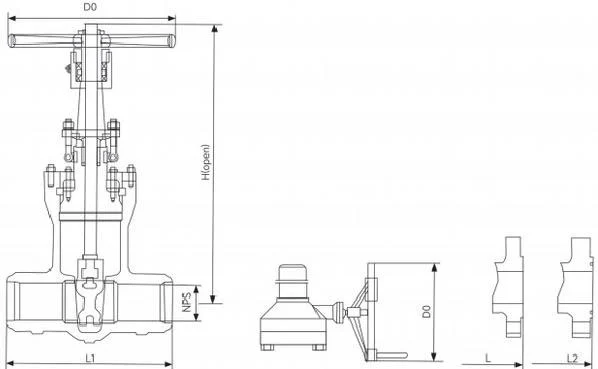

Dimensional datas of ANSI Class 150#

NPS DN	1/2	3/4	1	1-1/2	2	2-1/2	3	4	6	8	10	12	14	16	in
NPS DN	15	20	25	40	50	65	80	100	150	200	250	300	350	400	mm
L (RF)	4.25	4.62	5.00	6.5	7.00	7.5	8.00	9.00	10.50	11.50	13.00	14.00	15.00	16.00	in
L (RF)	108	117	127	165	178	190	203	229	267	292	330	356	381	406	mm
L1 (BW)	4.25	4.62	5.50	7.00	7.50	8.00	8.50	9.50	11.00	12.00	13.50	14.50	15.50	16.50	in
L1 (BW)	108	117	140	178	191	203	216	242	280	305	343	369	394	419	mm
H (open)	8.25	8.50	9.25	11.75	15.25	17.00	18.88	23.00	30.50	37.62	45.50	53.12	59.38	67.00	in
H (open)	210	215	235	300	386	434	480	584	765	956	1149	1350	1508	1703	mm
D0	4	4	6	6	8	8	10	12	12	14	16	18	20	22	in
D0	100	100	140	140	200	200	250	300	300	350	400	450	500	550	mm
WT(kg)-	3	3.5	5.5	9.2	15	21	27	42	64.5	101	149	221	303	387	BW
WT(kg)-	2.5	3	4	8	12.5	15	21.5	34	58	90	130.5	207	275	355	RF/RTJ

Dimensional datas

ANSI Class 900#
NPS DN	2	2-1/2	3	4	6	8	10	12	14	16	in
NPS DN	50	65	80	100	150	200	250	300	350	400	mm
L1 (BW)	8.50	10.00	12.00	14.00	20.00	26.00	31.00	36.00	39.00	43.00	in
L1 (BW)	216	254	305	356	508	660	787	914	991	1092	mm
L (RF)	14.50	165.50	15.00	18.00	24.00	29.00	33.00	38.00	40.50	44.50	in
L (RF)	368	419	381	457	610	737	838	965	1029	130	mm
L2 (RTJ)	14.62	16.62	15.12	18.12	24.12	29.12	33.12	38.12	40.88	44.88	in
L2 (RTJ)	371	422	384	460	613	740	841	968	1038	140	mm
H (open)	17.62	17.62	19.5	22.88	32.62	37.60	45.5	53.12	59	70.5	in
H (open)	448	448	495	580	830	955	1165	1350	1500	1790	mm
D0	14	14	14	14	18	24	28	34	34	34	in
D0	350	350	350	350	450	600	700	850	850	850	mm
WT(kg)	39	39	48	69	158	289	482	710	998	1390	BW
WT(kg)	69	69	72	110	253	430	710	1025	1452	1960	RF/RTJ

Dimensional datas

ANSI Class 1500#											ANSI Class 2500#
NPS DN	2	2-12	3	4	6	8	10	12	14	16	2	2V4	3	4	6	8	10	12	14	16	in
NPS DN	50	65	80	100	150	200	250	300	350	400	50	65	80	100	150	200	250	300	350	400	mm
L1 (BW)	8.50	10.00	2.00	16.00	20.00	28.00	34.00	39.00	42.00	47.00	11.00	13.00	14.50	18.00	24.00	30.00	36.00	41.00	-	-	in
L1 (BW)	216	254	305	406	559	711	864	991	1067	1194	279	330	368	457	610	762	914	1041	-	-	mm
L (RF)	14.50	16.50	8.50	21.50	27.75	32.75	39.00	44.50	49.50	54.50	17.75	20.00	22.75	26.50	36.00	40.25	50.00	56.00	-	-	in
L (RF)	368	419	470	546	705	832	991	130	1257	1384	451	508	578	673	914	1022	1270	1422	-	-	mm
L2 (RTJ)	15.50	16.62	8.62	21.62	28.00	33.12	39.38	45.12	50.25	55.38	17.88	20.50	23.00	26.88	36.50	40.88	50.885	56.88			in
L2 (RTJ)	371	422	473	549	711	841	1000	1146	1276	1407	454	514	584	683	927	1038	1292	1445			mm
H (open)	17.62	17.62	21.62	25.25	33.5	38.62	46.5	62.25	70.5	78	22.5	22.5	25.62	30	36.62	41.38	44.88	6 60.25	-	-	in
H (open)	448	448	550	640	850	980	180	1580	1790	1980	570	570	650	760	930	1050	140	1530	-	-	mm
D0	14	14	14	18	24	28	34	34	34	34	14	14	18	24	28	34	34	34	-	-	in
D0	350	350	350	450	600	700	850	850	850	850	350	350	450	600	700	850	850	850			mm
WT(kg)	45	45	55	77	175	323	540	795	1115	1556	110	110	150	175	380	575	980	1570	-	-	BW
WT(kg)	80	80	95	123	283	481	795	1148	1626	2195	165	195	235	316	635	910	1780	2680	-	-	RF/RTJ
