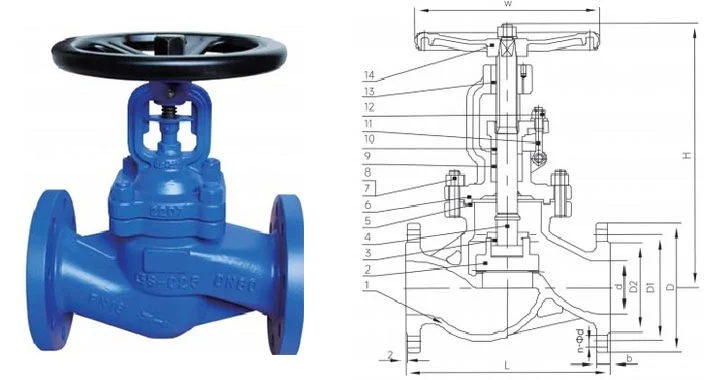

DIN Cast Steel Globe Valve

Specifications

Taian is a manufacturer and supplier specializing in supplying DIN Cast Steel Globe Valve.Taian produces steel stop valves that comply with the EN 12516 standard. For larger sizes, to facilitate operation, we recommend using counter-flow (where the liquid flows from top to bottom). Optional straight, Y-shaped and angular types; Bellows sealed stop valves are also optional. The valve plug can be a valve plug, a needle valve plug or a throttle (parabolic) type. DIN Cast Steel Globe Valve is operated by lifting or lowering the valve stem. It is mainly used to control the fluid in pipelines, featuring strong pressure-bearing capacity and excellent sealing performance. DIN Cast Steel Globe Valve is applicable to various working conditions, including high temperature, high pressure and highly corrosive media. It can be installed at any position on the pipeline and adjust the pressure and flow rate of the fluid as needed. This valve is widely used in fluid control systems of industries such as petroleum, chemical engineering, power, and metallurgy.

Applicable standards

●Design and Manufacture:DIN 3356.BS 1873

●Face to Face Dimensions:DIN 3202.BS EN 558-1

●Flanged Ends Dimensions:DIN 2543-2545.EN 1092-1

●Test &Inspect:DIN 3230.BS EN 12569

Materials of parts

Dimensional datas of PN16

Dimensional datas of PN25

Dimensional datas of PN40

Dimensional datas of PN64

advantage

1.Strong cast steel material: DIN Cast Steel Globe Valve is made of high-quality cast steel material, has excellent corrosion resistance and high temperature resistance, can adapt to a variety of harsh conditions.

2.Good sealing performance: The cast steel globe valve is equipped with a sealed structure, through the contact between the valve plate and the seat, to ensure that the fluid completely stops flowing when the globe valve is closed to prevent leakage and leakage.

3.Accurate flow control: DIN Cast Steel Globe Valve by lifting or lowering the stem, to achieve valve opening and closing, so as to accurately control the fluid on and off. Easy to operate, small operating torque.

4.Reliable bearing capacity: Cast steel globe valve is made of cast steel material, with high strength. It can withstand high pressure and shock loads to ensure the safe operation of the system.
