Cast Steel Trunnion Mounted Ball Valve

As a professional high quality Taian Cast Steel Trunnion Mounted Ball Valve manufacturer,we will offer you the best after-sale service.Taian industrial valve co has different types and materials for every trunnion ball valve need, in whatever application is required. Spanning over three decades of expertise, Taian trunnion ball valve manufacturers produce customized ball valves made from the highest quality materials and that adhere to the top API standard.

Send Inquiry

Product Description

Specifications

You can rest assured to buy Taian Cast Steel Trunnion Mounted Ball Valve from our factory.The Taian ear shaft mounting ball valve features an adjustable gland packing box with multiple valve stem seals to help our customers meet the strict ISO 15848 unorganized emission test requirements. The installation of ball valves in Cast Steel Trunnion Mounted Ball Valve aims to provide our customers with the highest confidence in the process of maintaining their working condition. The Taian ear shaft mounted ball valve meets demanding specifications such as API 607/6FA fire safety, API 6D, API 598 pressure test requirements, SIL3, and many others.

Cast Steel Trunnion Mounted Ball Valve

Applicable standards:
●STEEL BALL VALVES API608/API 6D
●STEEL BALL VALVES ISO14313
●FIRE SAFE, API607
●ANTI STATICS, API608
●STEEL VALVES, ASME B16.34
●FACE TO FACE ASME B16.10
●END FLANGES, ASME B16.5
●BUTTWELDING ENDS ASME B16.25
●INSPECTION AND TEST, API 598/API6D

Design descriptions:
●FULL PORT DESIGN
●BB.BOLTED BONNET.SPLIT BODY
●THREE PIECES BODY FOR 12"&ABOVE
●TRUNNION MOUNTED BALL TYPE
●BLOW-OUT PROOF STEM
●FIRE SAFE CONSTRUCTION

●ANTI STATICS DEVICE
●STOPPER DEVICE
●ISO 5211 MOUNTING PAD
●FLANGED OR BUTTWELDING ENDS
●AVAILABLE WITH WG OPERATOR

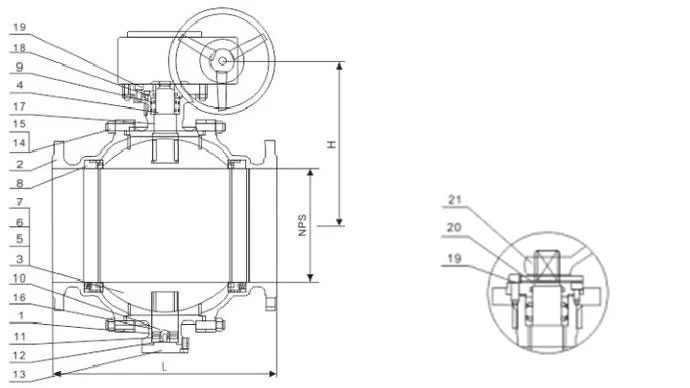

Materials of parts

No.	Part Name	ASTM Materials
1	Body	A216-WCB	A352-LCB	A351-CF8M	A8904A	A8905A
2	Bonnet	A216-WCB	A352-LCB	A351-CF8M	A8904A	A8905A
3	Ball	A182-F304	A182-F304	A182-F316	A182 F51	A182 F53
4	Stem	A276-304	A276-304	A276-316	A182 F51	A182 F53
5	Seat	A105+ENP	A350-LF2+ENP	A182-F316	A182 F51	A182 F53
6	Seat Insert	Glass Filled PTFE			PTFE	PTFE
7	Seat Spring	Inconel X-750	nconel X-750	Inconel X-750	Inconel X-750	Inconel X-750
8	Seat O-Ring	NPR	Viton	Viton	Viton	Viton
9	Stem O-Ring	NBR	Viton	Viton	Viton	Viton
10	Bonnet Gasket	Graphite+304	Graphite+304	Graphite+316	316+Graphite	316+Graphite
11	Bonnet O-Ring	NBR	Viton	Viton	Viton	Viton
12	Antistatic Spring	SS304	SS304	SS316	A182 F316	A182F316
13	Lower Cover	A216-WCB	A182-F304	A182-F316	A182 F51	A182 F53
14	Bonnet Stud	A193-B7	A320-L7	A193-B8	A193-B8M	A193-B8M
15	Bonnet Stud Nut	A194-2H	A194-4	A194-8	A194-8M	A194-8M
16	Trunnion	A276-304	A276-304	A276-316	A182 F51	A182 F53
17	Trunnion Bearing	304+PTFE	304+PTFE	316+PTFE	316+PTFE	316+PTFE
18	Gland Flange	A216-WCB	A352-LCB	A351 CF8M	A8904A	A8905A
19	Gland Bolt	A193-B7	A193-B7	A193-B8	A193-B8M	A193-B8M
20	Stop Plate	C.S	S.S	S.S	S.S	S.S
21	Handle	C.S		S.S	S.S	S.S

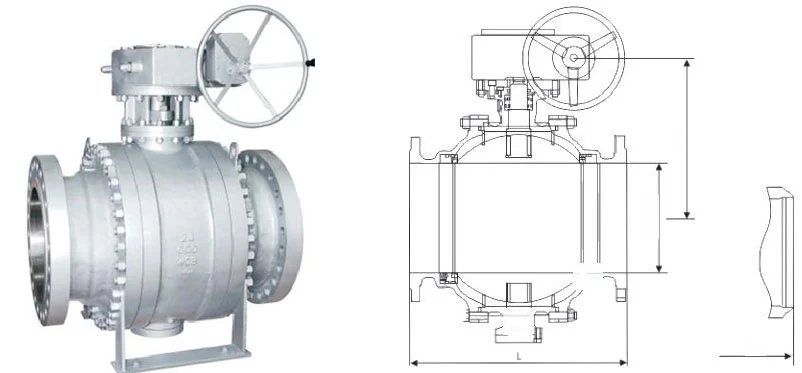

Cast Steel Trunnion Mounted Ball Valve

Dimensional datas of ANSI Class 150#

NPS DN	2	2-12	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	36	in
NPS DN	50	65	80	100	150	200	250	300	350	400	450	500	600	650	700	750	800	900	mm
L (RF)	7.00	750	8.00	900	15.50	18.00	21.00	24.00	27.00	30.00	34.00	36.00	42.00	45.00	49.00	51.00	54.00	60.00	in
L (RF)	178	190	203	229	394	457	533	610	686	762	864	914	1067	1143	1245	1295	1372	1524	mm
L1 (BW)	8.50	950	11.12	12.00	18.00	20.50	22.00	25.00	30.00	33.00	36.00	3900	45.00	49.00	53.00	55.00	60.00	68.00	in
L1 (BW)	216	241	283	305	457	521	559	635	762	838	914	991	143	1245	1346	1397	1524	1727	mm
H	700	750	825	925	20.88	24.62	25.62	30.75	31.00	36.25	3825	43.38	45.25	50.75	55.12	64.12	70.88	80.75	in
H	177	190	210	235	530	625	650	780	790	920	970	100	150	1290	1400	1630	1840	2050	mm
W	14	16	20	20	24	24	24	24	32	32	32	32	32	32	32	32	32	32	in
W	350	400	500	500	600	600	600	600	800	800	800	800	800	800	800	800	800	800	mm
WT(kg)	15	19	27	38	81	140	160	205	260	390	510	750	1200	1400	1860	2100	2530	2970	RF
WT(kg)	13.5	15.5	24.5	325	76	132	147	182	241	370	495	726	1125	1250	1640	1930	2390	2760	BW

Dimensional datas of ANSI Class 300#

NPS DN	2	2-12	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	36	in
NPS DN	50	65	80	100	150	200	250	300	350	400	450	500	600	650	700	750	800	900	mm
L (RF)	8.50	950	11.12	12.00	15.88	1975	22.38	25.50	30.00	33.00	36.00	3900	45.00	49.00	53.00	55.00	60.00		in
L (RF)	216	241	283	305	403	502	568	648	762	838	914	991	143	1245	1346	1397	1524	-	mm
L1 (BW)	8.50	950	11.12	12.00	18.00	20.50	22.00	25.00	30.00	33.00	36.00	3900	45.00	49.00	53.00	55.00	60.00	-	in
L1 (BW)	216	241	283	305	403	521	559	635	762	838	914	991	1143	1245	1346	1397	1524	-	mm
H	700	750	8.25	925	20.88	24.62	25.62	30.75	31.00	36.25	38.25	43.38	45.25	50.75	55.12	64.12	70.88		in
H	177	190	210	235	530	625	650	780	790	920	970	100	1150	1290	1400	1630	1800	-	mm
W	14	16	20	20	24	24	24	24	32	32	32	32	32	32	32	32	32	-	in
W	350	400	500	500	600	600	600	600	800	800	800	800	800	800	800	800	800	-	mm
WTIkg)-	19	24	34	48	101	175	200	255	325	485	635	935	1500	1750	2225	2450	2870		RF
WTIkg)-	14	16	25	34	82	145	155	185	238	375	516	785	1280	1375	1825	2180	2260		BW

Dimensional datas of ANSI Class 600#

NPS DN	2	2-12	3	4	6	8	10	12	14	16	18	20	24	26	28	in
NPS DN	50	65	80	100	150	200	250	300	350	400	450	500	600	650	700	mm
L/L1 (RF/BW	1.50	13.00	14.00	17.00	2200	26.00	31.00	33.00	35.00	39.00	43.00	47.00	55.00	57.00	61.00	in
L/L1 (RF/BW	292	330	356	432	559	660	787	838	889	991	1092	1194	1397	1448	1549	mm
L2 (RTJ)	11.62	13.12	14.12	1712	22.12	26.12	31.12	33.12	35.12	3912	43.12	4725	55.38	57.50	61.50	in
L2 (RTJ)	295	333	359	435	562	664	791	841	892	994	1095	1200	1407	1461	1562	mm
H	712	762	8.50	950	2125	25.00	26.12	31.12	31.88	36.38	38.75	44.50	46.62	52.50	57.00	in
H	180	193	215	241	540	635	665	790	810	925	985	130	1185	1335	1450	mm
W	14	16	20	20	24	24	24	24	32	32	32	32	32	32	32	in
W	350	400	500	500	600	600	600	600	800	800	800	800	800	800	800	mm
WT(kg)	26	35	58	81	142	287	540	780	1000	1300	1700	2100	3400	3800	4500	RF/RTJ
WT(kg)	19	25	42	51	85	200	395	610	805	1010	1350	1656	2774	3125	3790	BW

Dimensional datas of ANSI Class 900#

NPS DN	2	2-12	3	4	6	8	10	12	14	16	18	20	24	in
NPS DN	50	65	80	100	150	200	250	300	350	400	450	500	600	mm
LL1 (RF/BW)	14.50	16.50	15.00	18.00	24.00	29.00	33.00	38.00	40.50	44.50	48.00	52.00	61.00	in
LL1 (RF/BW)	368	419	381	457	610	737	838	965	1029	1130	1219	1321	1549	mm
L2 (RTJ)	14.62	16.62	15.12	18.12	24.12	29.12	33.12	38.12	40.88	11.88	48.50	52.50	6175	in
L2 (RTJ)	371	422	384	460	613	740	841	968	1038	1140	1232	1334	1568	mm
H	8.62	925	10.25	15.38	25.75	30.25	31.75	38.00	38.50	45.00	47.00	53.50	56.00	in
H	219	235	260	390	655	770	805	965	980	145	1195	1360	1425	mm
W	20	20	20	24	24	24	24	32	32	32	32	32	32	in
W	500	500	500	600	600	600	600	800	800	800	800	800	800	mm
WT(kg)	31	43	68	98	171	345	650	940	1205	1565	2050	2535	3950	RF/RTJ
WT(kg)	23	31	51	61	102	240	480	735	965	1215	1625	1995	3335	BW

Dimensional datas of ANSI Class 1500#

NPS DN	2	2-12	3	4	6	8	10	12	14	16	in
NPS DN	50	65	80	100	150	200	250	300	350	400	mm
LL1 (RF/BW)	14.50	16.50	18.50	21.50	27.75	32.75	39.00	44.50	49.50	54.50	in
LL1 (RF/BW)	368	419	470	546	705	832	991	1130	1257	1384	mm
L2 (RTJ)	14.62	16.62	18.62	21.62	28.00	33.12	39.38	45.12	20.25	44.38	in
L2 (RTJ)	371	422	473	549	711	841	1000	1145	1276	1407	mm
H	11.25	12.00	13.25	20.00	33.50	39.38	41.12	49.38	50.00	58.50	in
H	285	305	338	506	852	1000	1045	1255	1270	1485	mm
W	20	20	24	24	24	32	32	32	32	32	in
W	500	500	600	600	600	800	800	800	800	800	mm
WT(kg)	49	67	106	153	268	540	1020	1475	1885	2455	RF/RTJ
WT(kg)	33	44	73	87	145	345	685	1050	1385	1735	BW

Dimensional datas of ANSI Class 2500#

NPS DN	2	2-12	3	4	6	8	10	12	14	16	in
NPS DN	50	65	80	100	150	200	250	300	350	400	mm
LL1 (RF/BW)	1775	20.00	2237	26.50	36.00	4025	50.00	56.00			in
LL1 (RF/BW)	451	508	578	673	914	1022	1270	1422			mm
L2 (RTJ)	1788	21.25	23.00	26.88	36.50	40.88	50.88	56.88			in
L2 (RTJ)	454	540	584	683	927	1038	1292	1445	-	-	mm
H	1200	1288	1425	2125	35.88	4212	44.00	53.00	-		in
H	304	327	362	540	911	1070	1120	1345	-	-	mm
W	20	24	24	24	32	32	32	32	-	-	in
W	500	600	600	600	800	800	800	800	-	-	mm
WT(kg)	55	76	120	173	302	612	1150	1665	-		RF/RTJ
WT(kg)	41	55	91	110	182	430	855	1315	-		BW

Advantages of the Trunnion-mounted Ball Valve

Lower operating torque

The operating torque of the trunnion-mounted ball valves is reduced due to additional support provided by the trunnion, giving reinforcement to the bottom of the ball and the top.

Ease of operation

A quarter-turn is easier to operate as opposed to valves that a require a full turn. It is preferred by industries that require quick maneuverability and shut-off.

Minimized seat wear

The isolated nature of the trunnion-mounted ball prevents the wear of seats resulting in its durability and longer service life.

High and low-pressure control

It is ideal for high and low-pressure control because of the sealing of the ball valve by a separate spring mechanism.
